SMAJAYU JY305 Tractor Auto Steer System 2.5cm Accuracy with RTK Base and PPP Mode no Need Base with 10cm+ Accuracy for Spray,Harvest Farm Management in Concentric Circle,U-Ship,U-Turn..

Price: $4,375.00
(as of Feb 21, 2024 07:14:04 UTC – Details)

Product Description

Ideal solution for precision agriculture

Please note that:

Please must read user manuel during your installating the system by yourself.Please must contact tech-support team by email to remote assist the installation and fault diagnosis if you receive the system.This system kits available on Amazon suitable for John Deere tractor and new holland tractor or tractor steering colume with 36 teeth and inner diameter 21.3-21.7mm. Otherwise contact SMAJAYU tech team for 1:1 spline.Do not update the software and any component by yourself without the assistance of our.

The Smajayu JY305 Auto-Steering System is an automatic steering system which uses high-torque motor control steering wheel. It integrates the advantages of convenient installation, large torque, high precision, low noise, low heat and quick debugging. It is suitable for various applications of tractors, harvesting machines, plant protection machinery, rice transplanters and other agricultural models.

The system includes a control tablet integrated with a 4G modem, a steering wheel motor with a built-in controller, and an angle sensor. It can be widely used for sowing, cultivating, trenching, ridging, spraying , transplanting, land consolidation, harvesting and other work scenarios.

Display the worked parcel area

1 Line Type 2 Correction type 3 Display Area 4 Accessories

Experience Simulator

You can download the emulator on your computer in advance to experience the software features. Please refer to the Application Guide (PDF) for download.

Easy Installation

JY305 autosteer system is simple in composition, in single-antenna mode, easy to install,and can be operated in the field directly after installation.

Precision 2.5cm, Speed 1-5km/h

Straight line accuracy ± 2.5cm, accurate joint, full speed operation.Save time and energy for your work and effectively improve work efficiency.

10.1″ touch screen tablet

With 4G modem, Bluetooth and WIFI, it is ideal to connect with CORS or upload the working information to digital farm.

R71 Smart GNSS GPS Antenna

Waterproof, Ultraviolet-proof and dustproof property.

Stable Signal and Anti-interference

2.5cm accurate RTK auto-steer for tractor.Support CORS account for precision.Work progress can be maintained in low visibility weather or at night.

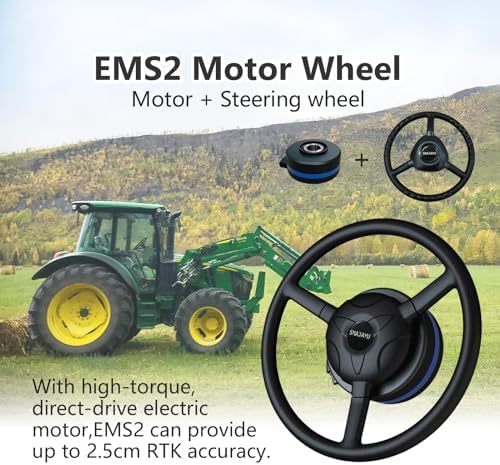

EMS2 ELECTRIC MOTOR

The EMS2 integrates the electric motor and ECU into one rugged device which could output stable and high torque. Easy to install and maintain makes it a reachable solution for all farmers. It works with low noise, low heat and high accuracy.Realize automatic steering function.

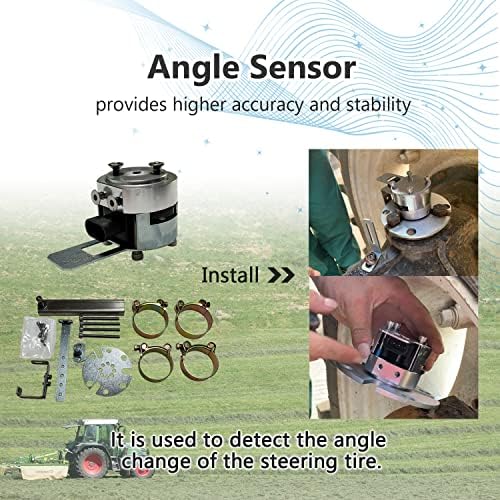

【Emphasis 2】JY305 system support two modes, angle sensor or single gyroscrope. Single gyro mode simply can work without installing angle sensor. If you can install angle sensor and do calibration，angle sensor will be more precise whatever how slow speed is.
【Emphasis 3】 The spline included is type A, 36 teeth, diameter 21.3-21.7mm, suitable for John Deere, New Holland. If the spline not suitable for your tractor, 1:1 free spline can be got separately from tech support team.
【Emphasis 4】Field measurement is supported. The displayer can show how much the field is and how much area you worked.
【Emphasis 5】Installation manual and video must be read before you buy or during install the system. Remote diagnosis and training is supported by Tech team.
【What is it】Auto steering system includes a 10” water proof tablet integrated with a high-precision GNSS Board, a high touque auto steering motor with built-in controller, an angle sensor, high precision GNSS GPS receiver built in gyroscope and radio module and accessories cables and tools.
【How to work】This tractor Auto steering system can automatically driveless on farm. Login CORS account or connect with RTK signal to get correction service so that it get 2.5cm stable precision farming.
【Why use】It integrates the advantages of convenient installation, large torque, high precision, remote diagnosis, and quick debugging, online remote support. This system management makes farming intelligent, enhances farmer productivity and saves labor cost.
【Where to use】It can be widely used for sowing, cultivating, trenching, ridging,spraying pesticide,transplanting,land consolidation, harvesting and other work scenaries. It is suitable for various applications of JOHN-DEERE tractors, harvesting machines, plant protection Elect machinery, rice transplanters,and other agricultural models.
【Key Features】Supports multiple constellations & frequencies:GPS L1, L2 GLONASS L1, L2 BeiDou B1,B2 ,B3.Remote support, and OTA software update，Multiple languages supported, Map-based navigation,Task Controller functionality via Setting A-B for straight/Curve or lastpass navigation.
